A Symphony of Modern Aesthetics and Engineering Precision: An In-Depth Analysis of YAKCO Art Deco Melamine Faced Board Introduction: When Classic Art Meets Modern Surface Technology

Since its emergence in the early 20th century, Art Deco has become an enduring icon in high-end interior design, celebrated for its bold geometric lines, symmetrical aesthetics, and luxurious visual expression. However, the traditional Art Deco style, heavily reliant on precious hardwoods and labor-intensive lacquer craftsmanship, often faces significant challenges in modern sustainable architecture and high-frequency commercial environments, including poor durability, high maintenance costs, and considerable ecological burdens.

YAKCO MATERIALS (JIANGSU) CO., LTD. has successfully addressed these challenges with the launch of the YAKCO Art Deco Melamine Faced Board. Utilizing advanced surface decoration technology based on paper impregnated with thermosetting resins, the product faithfully recreates century-old decorative aesthetics on high-performance engineered wood substrates.

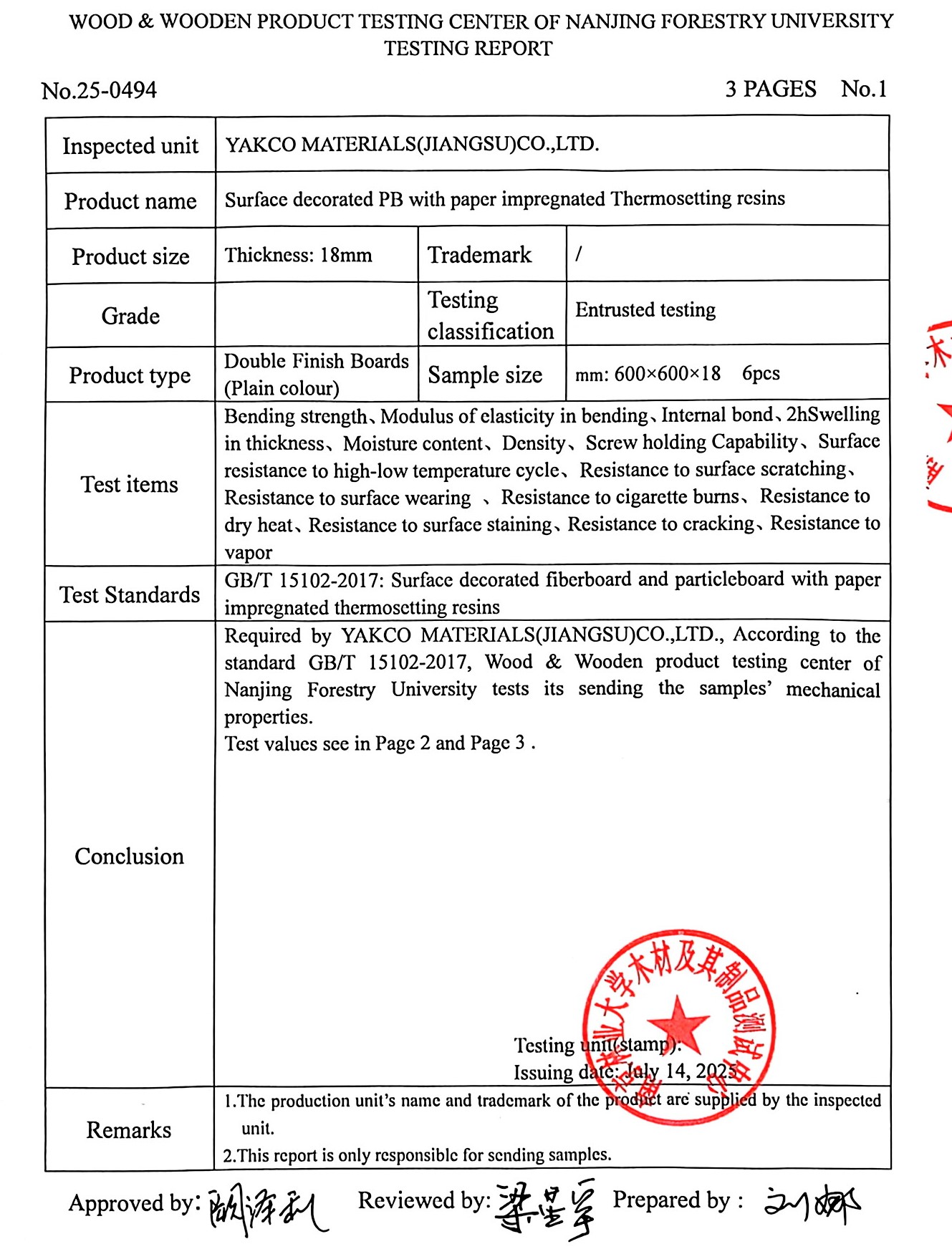

To thoroughly examine this innovative material that combines exceptional visual appeal with industrial-grade performance, this article analyzes authoritative testing data issued by the National Forestry and Grassland Administration Quality Inspection and Testing Center for Wood-Based Panels and Products (Nanjing) and the Wood and Wood Products Testing Center of Nanjing Forestry University (Report No. 25-0494). The product was tested according to GB/T 15102-2017 standards using 18mm double-sided melamine faced particleboard samples in plain colour finish.

To learn more about YAKCO Art Deco boards

I. Outstanding Physical Structure: High Density and Superior Dimensional Stability

For decorative panels, the internal substrate structure determines long-term performance and service life. In physical property testing, YAKCO demonstrated remarkably balanced and high-level structural integrity.

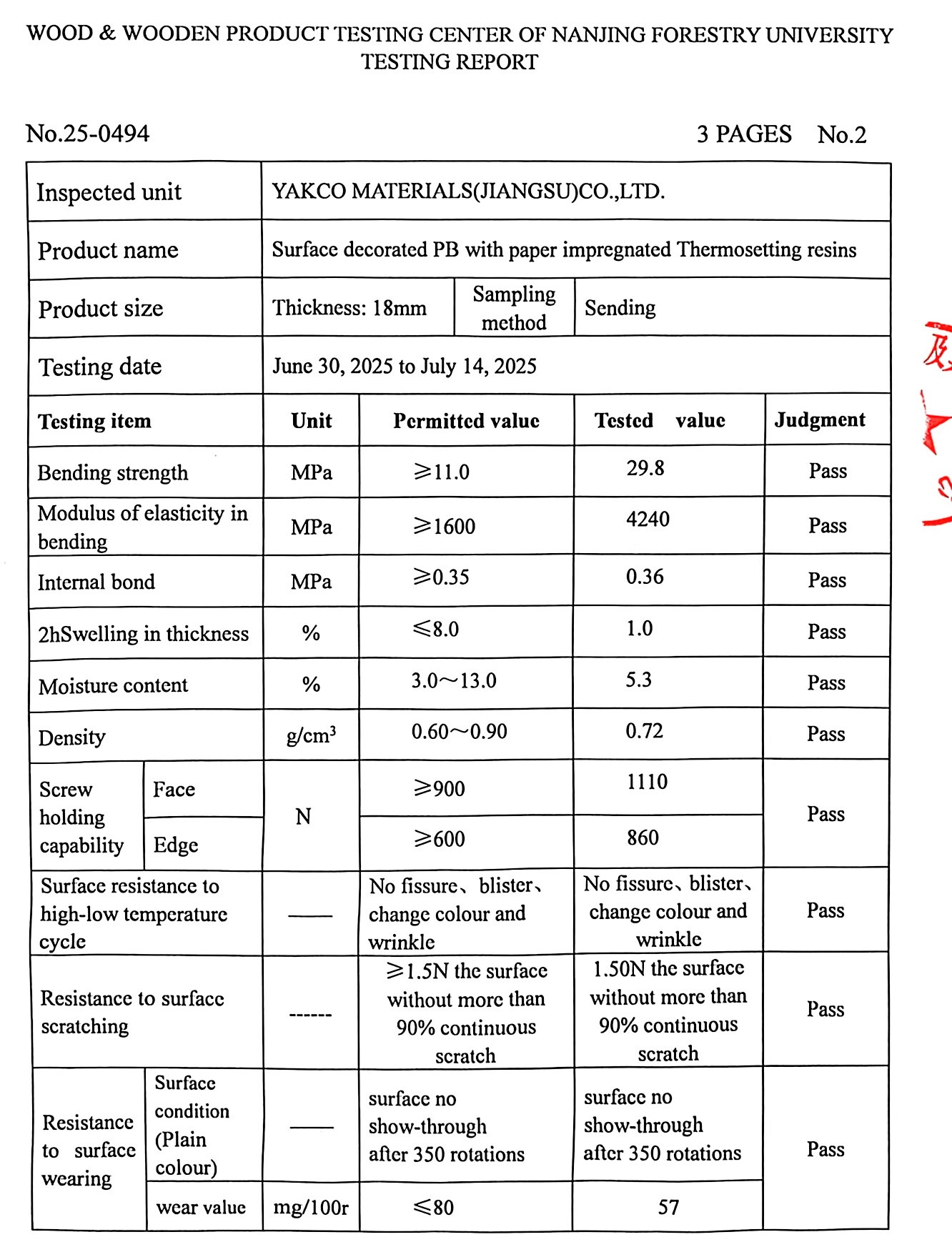

Stable Density Performance

The measured density reached a stable 0.72 g/cm³, providing the panel with a solid and reliable internal framework.

Precise Moisture Control

The moisture content was strictly maintained at 5.3%, perfectly aligned with the natural humidity balance required for various indoor environments.

Exceptional Water Resistance

In the critical 2-hour thickness swelling test after water absorption, the measured value was only 1.0%. This indicates that even under humid conditions, the board edges are highly resistant to swelling, delamination, or blistering.

II. Hardcore Mechanical Strength: Superior Load-Bearing and Screw Holding Performance

Art Deco furniture frequently incorporates customized structures, floating designs, and heavy metallic hardware systems, placing strict demands on bending resistance and screw holding strength. Based on the test results, the YAKCO particleboard substrate delivered exceptional performance.

Bending Strength

The measured bending strength reached an impressive 29.8 MPa, providing excellent transverse load-bearing capability.

Modulus of Elasticity

With a modulus of elasticity value of 4240, the board exhibits excellent rigidity and recovery performance under stress, effectively minimizing sagging or deformation during long-term use.

Internal Bond Strength

The internal bond strength reached 0.36 MPa, demonstrating strong adhesion between wood particles and thermosetting resin binders, significantly reducing the risk of internal delamination.

Outstanding Screw Holding Capacity

The surface screw holding strength achieved 1110 N, while edge screw holding strength reached 860 N. This powerful fastening performance ensures that cabinet hinges and heavy-duty drawer slides remain stable even after tens of thousands of opening and closing cycles.

III. Surface Technology Innovation: An Indestructible Artistic Exterior

The core appeal of the YAKCO Art Deco panel lies in its visually sophisticated surface texture. Modern thermosetting resin technology gives the panel physical and chemical durability far beyond traditional natural veneers.

The product achieved outstanding results across all surface durability tests.

1. Extreme Wear and Scratch Resistance

Frequent friction and object movement are major causes of decorative surface deterioration in daily use. After 350 abrasion cycles, the YAKCO panel surface remained intact without substrate exposure, with wear loss measuring only 57 mg/100r — significantly below the 80 mg standard limit.

Additionally, under a 1.50N hard stylus scratch test, no continuous visible scratches were formed. This means the surface can effectively resist accidental scratches caused by keys, cups, or even pet claws during everyday use.

2. Premium Heat Resistance, Moisture Protection, and Stain Resistance

As a material suitable for premium kitchens, bar counters, and bathroom cabinetry, the YAKCO panel demonstrated remarkable chemical stability and environmental durability.

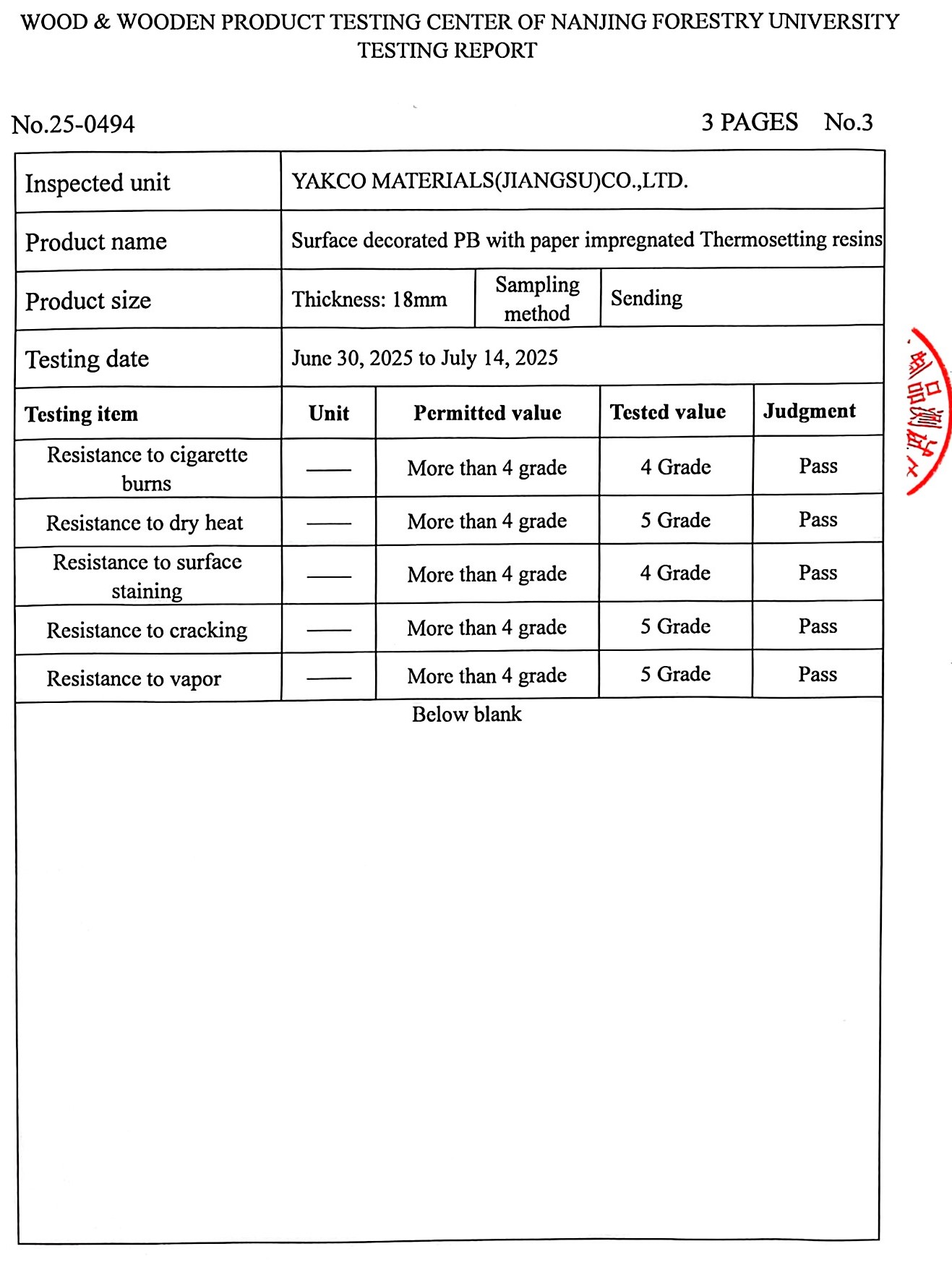

Its dry heat resistance, crack resistance, and steam resistance all achieved the highest Grade 5 rating. Even when exposed to 100°C dry heat or continuous high-concentration steam, the surface showed no cracking, bubbling, whitening, or deformation.

Meanwhile, its Grade 4 cigarette burn resistance and surface stain resistance ensure that coffee stains, tea marks, and accidental cigarette ash contact do not leave permanent damage on the decorative surface.

IV. Conclusion and Future Applications

Through comprehensive analysis of authoritative testing data, it becomes clear that the YAKCO Art Deco Melamine Faced Board is far more than merely a visually attractive decorative panel. By meeting rigorous engineering standards, it successfully transforms the luxurious aesthetics of classic Art Deco into a practical material solution suitable for high-frequency commercial spaces, luxury residences, and five-star hospitality environments.

Powered by advanced material technology, YAKCO has successfully integrated high-density structural stability, superior mechanical strength, and exceptional wear-resistant and stain-resistant surface performance into one cohesive product system.

This achievement is not only a tribute to the timeless elegance of Art Deco design, but also a textbook-level demonstration of modern surface technology applied within the engineered wood panel industry.
