Wood Texture Melamine Faced Board: The "Clarity" of Deep Embossing Is Determined from the Inside Out

        The value of wood texture melamine faced board lies in transforming wood texture from something you "see" into something you "feel". The bold grain of oak, the flowing waves of walnut, the precise synchronised embossing–these deep textures turn decorative panels from flat prints into three‑dimensional surfaces.

More: yakco technology

But there is an easily overlooked issue with deep embossing: with the same steel plate and the same pressure, the clarity of the texture varies when pressed on different substrates.

        Some textures have sharp edges and distinct layers; others are blurred and uneven in depth. The difference is not in the press–it is in the substrate.


1.Surface Soundness 1.58 MPa: Texture edges "do not blur"

The principle of deep embossing is simple: decorative paper impregnated with melamine resin is laid on the substrate, and a steel plate with a concave‑convex texture applies heat and pressure to "print" the texture onto the surface.

The deeper the texture, the more severe the stretching and compression of the decorative paper by the raised areas of the steel plate.

If the bonding strength between the decorative layer and the substrate is insufficient, the decorative paper will experience slight "rebound" at the edges of the texture during stretching –the texture is clear when the steel plate presses down, but the edges shrink slightly after release, causing the texture boundaries to become blurred.

This is why the same steel plate produces different results on different panels.

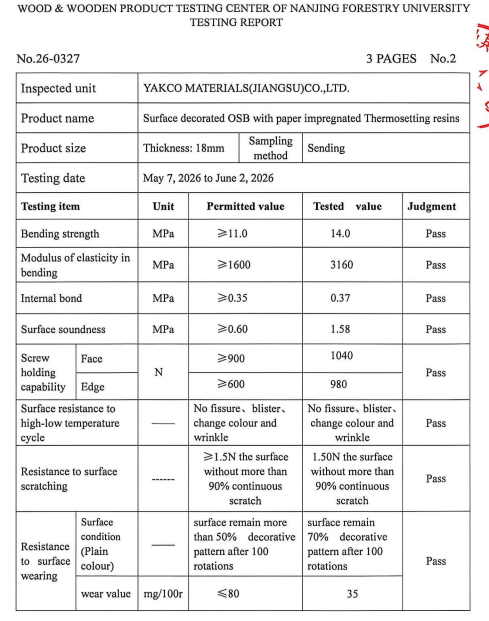

YAKCO achieved a surface soundness of 1.58 MPa, while the national standard only requires 0.60 MPa.

This bonding strength, more than double the standard, means that during deep embossing, the decorative paper is firmly "nailed" to the substrate–no rebound, no shrinkage.

 The texture edges remain sharp, and every groove of the oak grain is clearly distinguishable.



2.Internal Bond 0.37 MPa: Texture depth "does not diminish"

Deep embossing is not just "pressing the surface"–the pressure is transmitted through the decorative layer to the surface of the substrate.

If the internal layers of the substrate are not tightly bonded, the surface layer will "collapse" downwards under pressure, resulting in an actual embossing depth that is less than the steel plate's designed depth–the texture "becomes shallower".

YAKCO achieved an internal bond of 0.37 MPa, higher than the national standard of 0.35 MPa. This means that the internal layers of the substrate are "held together tightly", and the surface layer does not collapse or shrink under pressure.

The concave‑convex texture of the steel plate is fully transmitted to the decorative layer, and the embossing depth is not compromised.

For designers seeking textures deeper than 0.5mm, this data means "as deep as the steel plate, as deep as the texture."



3.Density 0.72 g/cm³: "Consistent across the entire board"

         There is another hidden threat to deep embossing: uneven substrate density. Areas with higher density are pressed deeper, while areas with lower density are pressed shallower–on the same board, the texture depth varies, visually appearing "blurred."

YAKCO's substrate density is stable at 0.72 g/cm³, with minimal batch‑to‑batch fluctuation. Uniform density means that every part of the board responds consistently under pressure, and the texture depth remains the same from the front to the back of the board.

For large‑area embossed wood texture Melamine Faced Board or full cabinet doors, this data guarantees continuity and consistency of the texture.

4.The "Clarity" of Deep Embossing Is the External Manifestation of Substrate Stability

Designers choose wood texture melamine faced board for the authentic tactile feel of "texture you can touch."

But behind that tactile feel is the substrate supporting it–surface soundness determines whether the texture edges are clear, internal bond determines whether the texture depth is sufficient, and density uniformity determines whether the entire board is consistent.

YAKCO wood texture melamine faced board uses the three data points of surface soundness 1.58 MPa, internal bond 0.37 MPa, and density 0.72 g/cm³to answer the most fundamental questions of deep embossing: clear texture, sufficient depth, and consistent across the entire board.

When a designer says, "I want the wood texture to have edges I can feel," YAKCO provides an answer that does not require choosing between "visual effect" and "process realisation."

More:3D Embossed Wood Texture Melamine Faced Board
