What is melamine substrate?

Selecting appropriate decorative panel materials for interior architecture, commercial cabinetry, and custom joinery requires a technical understanding of core materials, surface lamination mechanics, and physical performance characteristics. At the center of modern decorative panel manufacturing is the melamine board substrate. A melamine board substrate serves as the foundational structural core onto which decorative paper impregnated with thermosetting melamine formaldehyde resin is directly bonded through thermal pressing. While the outer resin surface provides visual aesthetics, scratch defense, and chemical resistance, the internal substrate core determines the panel structural load capacity, screw holding retention, dimensional stability, weight distribution, and resistance to environmental moisture. Understanding the engineering, material options, machining behavior, and application contexts of the melamine board substrate enables architects, interior specifiers, and woodworkers to select the correct core formulation for every spatial application.

Fundamental Mechanics and Composition of Melamine Board Substrate Material

The term melamine substrate refers to the raw engineered wood panel that acts as the structural carrier for decorative surface papers. Although the finished product is often referred to simply as melamine, the performance of the panel depends heavily on the physical properties of the internal wood matrix.

The Chemical and Physical Bonding Process

The integration of a decorative paper face onto a melamine board substrate occurs through a single stage thermal lamination process, frequently called thermofused lamination or direct pressure lamination. During this manufacturing operation, raw engineered wood panels are placed into hot press machinery with sheets of decorative paper positioned on the top and bottom faces. The decorative paper has been pre-impregnated with uncured melamine formaldehyde resin and dried to a stable state.

When the press closes, temperatures ranging between one hundred eighty and two hundred twenty degrees Celsius are applied alongside hydraulic pressure between two and three megapascals. Under these elevated conditions, the thermosetting melamine resin liquifies and flows into the porous surface fibers of the melamine board substrate. As the press cycle continues, the resin undergoes an irreversible chemical cross-linking reaction, curing into a dense, solid thermosetting plastic. The resin forms a direct chemical and mechanical bridge with the outer wood fibers of the core, eliminating the need for secondary adhesives or glue lines. The decorative paper and the underlying core become a single unified panel structure ready for industrial fabrication.

Core Density Metrics and Structural Integrity

The physical strength of a melamine board substrate is directly related to its internal density profile. Density is measured in kilograms per cubic meter or pounds per cubic foot, reflecting the mass of wood fibers, particles, and resin binders compressed within a given volume. Substrates manufactured with higher internal density exhibit higher flexural strength, greater modulus of elasticity, and improved resistance to surface indentation under heavy mechanical stress.

During panel manufacturing, press controls create a non-uniform density distribution through the thickness of the board. The outer regions immediately beneath the decorative paper are compacted to a higher density to provide a smooth, firm backing that resists surface impacts and provides support for the thin melamine overlay. The center core retains a slightly lower density to optimize total panel weight while maintaining structural shear resistance. Achieving an appropriate balance between surface compaction and core density ensures that the melamine board substrate remains flat, resists bowing under structural loads, and provides clean edge profiles during high speed sawing operations.

Distinguishing Substrate Cores from Outer Resin Overlays

A common misconception in interior material specification involves confusing the decorative outer resin overlay with the supporting substrate beneath. The clear cured resin layer on the surface measures approximately zero point one millimeter in thickness. This surface film delivers high defense against daily abrasion, liquid spills, and household chemicals, but it possesses negligible structural strength on its own.

The underlying melamine board substrate represents more than ninety-eight percent of the total panel thickness, typically ranging from eight millimeters to twenty-five millimeters. The internal core must absorb physical impacts, support cantilevered hardware, retain mechanical fasteners, and span horizontal distances without sagging. While the outer resin layer provides the visual texture and surface durability, the mechanical durability of the overall furniture piece is governed by the structural quality of the substrate core.

Primary Engineered Wood Cores Used as Melamine Board Substrates

Manufacturers utilize several distinct types of engineered wood panels as substrates for melamine lamination. Each substrate material offers unique physical characteristics, machining qualities, and performance capabilities suited to specific interior applications.

Particle Board and Chipboard Core Structural Mechanics

Particle board, also known as chipboard, is one of the most widely specified options for a melamine board substrate in commercial furniture production. Particle board is manufactured from recycled wood chips, sawmill shavings, and virgin wood flakes mixed with synthetic resin binders and consolidated under heat and pressure.

The internal architecture of a particle board melamine board substrate features a layered structure. The center section contains larger wood flakes oriented to provide structural volume and dimensional stability. The outer layers consist of finer wood particles compacted tightly together to create smooth, dense outer faces. This fine surface structure prevents larger wood flakes from telegraphing or showing through the thin decorative melamine paper after thermal pressing. Particle board substrates offer consistent dimensional stability, flat panel surfaces, and high cost efficiency, making them a standard choice for office desks, residential wardrobe carcasses, and modular retail displays.

Medium Density Fiberboard Substrate Performance Profiles

Medium density fiberboard, commonly abbreviated as MDF, represents a refined substrate option for decorative melamine panels. MDF is produced by breaking down hardwood or softwood residuals into individual wood fibers using a mechanical refiner. These fine fibers are mixed with synthetic resins and wax emulsions, formed into a continuous mat, and compressed under high pressure and temperature.

A medium density fiberboard melamine board substrate possesses a highly uniform, homogenous internal density without internal voids, large chips, or grain directionality. This ultra smooth core profile makes MDF an exceptional foundation for high gloss melamine finishes, deep tactile surface texturing, and detailed digital decor prints. When deep press plates are used during lamination, the dense fiber structure absorbs deep surface profiles without telegraphing underlying irregularities. Furthermore, the smooth core allows for precise edge routing, decorative profiling, and clean machining without the risk of edge crumbling or internal void exposure.

High Density Fiberboard and Plywood Core Engineering

For applications demanding high structural strength or slim panel profiles, high density fiberboard and engineered plywood serve as heavy duty melamine board substrate materials. High density fiberboard, or HDF, is manufactured using the same process as MDF but compressed to a much higher density, typically exceeding eight hundred kilograms per cubic meter. HDF substrates provide exceptional impact absorption and high tensile strength, making them common in thin cabinet back panels, wall cladding systems, and commercial shelving.

Plywood substrates consist of multiple thin wood veneers stacked in alternating cross-laminated grain directions and bonded with structural adhesives before receiving melamine surface sheets. A plywood melamine board substrate delivers outstanding strength to weight ratios, high flexural rigidity, and superior screw holding capacity across both panel faces and narrow edges. Plywood cores resist bending under heavy continuous loads, making them suitable for institutional fixtures, commercial workbenches, and high end residential cabinetry.

Moisture Resistant and Flame Retardant Specialty Substrate Cores

Specialty core formulations modify the internal chemistry of the melamine board substrate to meet challenging environmental conditions and building safety codes. Standard particle board and MDF cores are sensitive to humidity and standing water, which can cause internal wood fibers to swell and disrupt the surface paper.

Moisture resistant substrates incorporate hydrophobic wax emulsions and water resistant resin binders, such as melamine urea formaldehyde or polymeric diphenylmethane diisocyanate, into the wood fiber mixture during core production. These panels, often tinted green for internal identification, maintain their structural bond strength and resist thickness swelling in high humidity areas like kitchen sink units, bathroom vanities, and laundry rooms. Flame retardant core substrates incorporate mineral fire suppressants into the fiber matrix. Tinted red or grey for code identification, flame retardant melamine board substrate panels slow flame spread and lower smoke development, satisfying fire safety codes for elevator interiors, commercial corridors, and public buildings.

Comparative Evaluation of Melamine Board Substrate Core Options

Evaluating the physical capabilities and practical suitability of different core options allows specifiers to match the appropriate melamine board substrate to specific structural and environmental demands.

Machining, Fabrication, and Structural Joinery Considerations

Processing panels constructed with a melamine board substrate requires specific tooling setups, cutting parameters, and assembly techniques to protect both the brittle cured resin face and the internal wood matrix.

Precision Sawing and Edge Chipping Prevention

Cutting pre-laminated melamine panels presents a unique machining challenge because the top and bottom faces are covered with thin, brittle cured melamine resin layers. Standard circular saw blades can tear the paper fibers as the teeth exit the panel, resulting in micro chipping along the cut line.

Professional woodworking operations utilize industrial panel saws equipped with an independent scoring saw blade located upstream from the main saw blade. The scoring blade rotates in the same direction as the panel feed, making a shallow preliminary cut through the lower melamine surface layer. The main saw blade then cuts through the remaining panel thickness from above. This dual blade arrangement ensures clean, chip-free edges on both top and bottom faces of the melamine board substrate. Maintaining proper blade height, correct tooth geometry such as triple chip grind patterns, and steady feed rates prevents edge chatter and preserves visual print fidelity along cut seams.

Tooling Wear and Cutter Selection Strategies

Machining melamine board substrate panels causes noticeable abrasive wear on standard cutting tools. The combination of dense wood fibers, synthetic resin binders inside the core substrate, and the hard cured melamine resin face accelerates edge dulling on high speed steel and standard carbide tools.

To maintain continuous production efficiency and clean edge quality, commercial fabrication facilities specify polycrystalline diamond tooling or advanced micro-grain carbide bits for routing and panel sizing. Diamond tooling maintains sharp cutting edges over extended production runs, generates less frictional heat during high speed CNC routing, and prevents thermal degradation of the resin binders along panel edges. Clean tool cuts are essential for achieving tight glue line joints during subsequent edge banding operations.

Fastening Systems and Screw Retention Capability

The screw retention capacity of a melamine board substrate depends on the density of the core material, the wood species mixture, and the choice of mechanical fasteners. Standard wood screws designed for solid timber can strip out internal core fibers if driven directly into engineered substrates without correct pilot holes.

Cabinetmakers utilize specialized hardware designed specifically for engineered wood cores, such as wide thread Confirmat screws, eccentric cam and pin connectors, and fluted hardwood dowels. Confirmat screws feature deep, flat threads and a large shoulder shank that cuts deep threads into the core, distributing mechanical tension across a wide internal surface area. Drilling accurate pilot holes matching the core root diameter of the screw prevents substrate splitting while maximizing thread engagement. MDF substrates offer high screw holding power on panel faces, whereas particle board substrates require precise torque settings during assembly to avoid stripping internal wood chips.

Environmental Influences and Substrate Stability

Engineered wood cores react dynamically to surrounding atmospheric conditions. Managing moisture exposure, thermal variation, and air quality standards ensures that installations utilizing a melamine board substrate maintain structural stability over long operational lifespans.

Humidity Expansion and Dimensional Tolerances

Although the cured melamine surface faces act as non-porous barriers against ambient moisture, the exposed cut edges of a melamine board substrate remain susceptible to water vapor absorption. Wood fibers naturally expand when absorbing ambient humidity and contract when air moisture drops, leading to minor dimensional changes.

If unsealed core edges are exposed to liquid spills or high relative humidity over extended periods, water molecules penetrate between the internal wood chips or fibers. This moisture absorption causes localized thickness swelling, commonly known as core edge mushrooming. Once the internal wood matrix swells beyond its elastic limit, the thickness expansion becomes permanent, causing visual distortion along edge banded seams. Specifying moisture resistant cores and applying high quality polyurethane hot melt adhesive edge banding creates a seal that protects the internal substrate from environmental humidity shifts.

Thermal Resistance and Indoor Environmental Performance

A melamine board substrate demonstrates stable performance across typical indoor temperature ranges. The cured thermosetting surface layer resists scorching from short term contact with warm objects, while the engineered wood core maintains dimensional stability under moderate temperature fluctuations.

However, placing melamine panels near heat sources, such as commercial ovens, built-in cooktops, or high output lighting fixtures, requires careful thermal management. Continuous exposure to elevated temperatures exceeding sixty degrees Celsius can dry out the internal core, increasing brittleness and potentially causing micro cracks in the decorative surface resin due to differential thermal expansion between the core wood fibers and the surface layer. Maintaining appropriate ventilation clearances around heat generating appliances preserves the structural balance of the substrate.

Formaldehyde Emissions and Indoor Air Quality Certifications

Indoor air quality represents a key factor in contemporary architectural design and building material selection. Synthetic resins used in the production of engineered wood cores, particularly urea formaldehyde binders, can release trace amounts of volatile organic compounds over time.

To ensure safe indoor environments, manufacturers produce melamine board substrate panels in compliance with strict international emission standards:

• European Union E1 standards set baseline emission thresholds for safe indoor furniture manufacturing.

• European Union E0 and Super E0 classifications designate ultra low formaldehyde emission panels suitable for sensitive indoor environments.

• California Air Resources Board Phase 2 regulations mandate strict emission limits for all composite wood products sold or used in North America.

• Environmental Protection Agency TSCA Title VI standards align federal regulations with California low emission requirements.

The continuous surface lamination of melamine resin paper over the top and bottom panel faces acts as an effective vapor barrier, encapsulating the core and reducing potential off-gassing. Applying durable edge banding to all four raw edges completes the encapsulation, ensuring that the finished assembly complies with stringent indoor air quality requirements for schools, healthcare facilities, and residential spaces.

Application Guidelines Across Interior Joinery Sectors

Matching the mechanical characteristics of specific melamine board substrate options to intended operational demands ensures long term functional utility across diverse architectural environments.

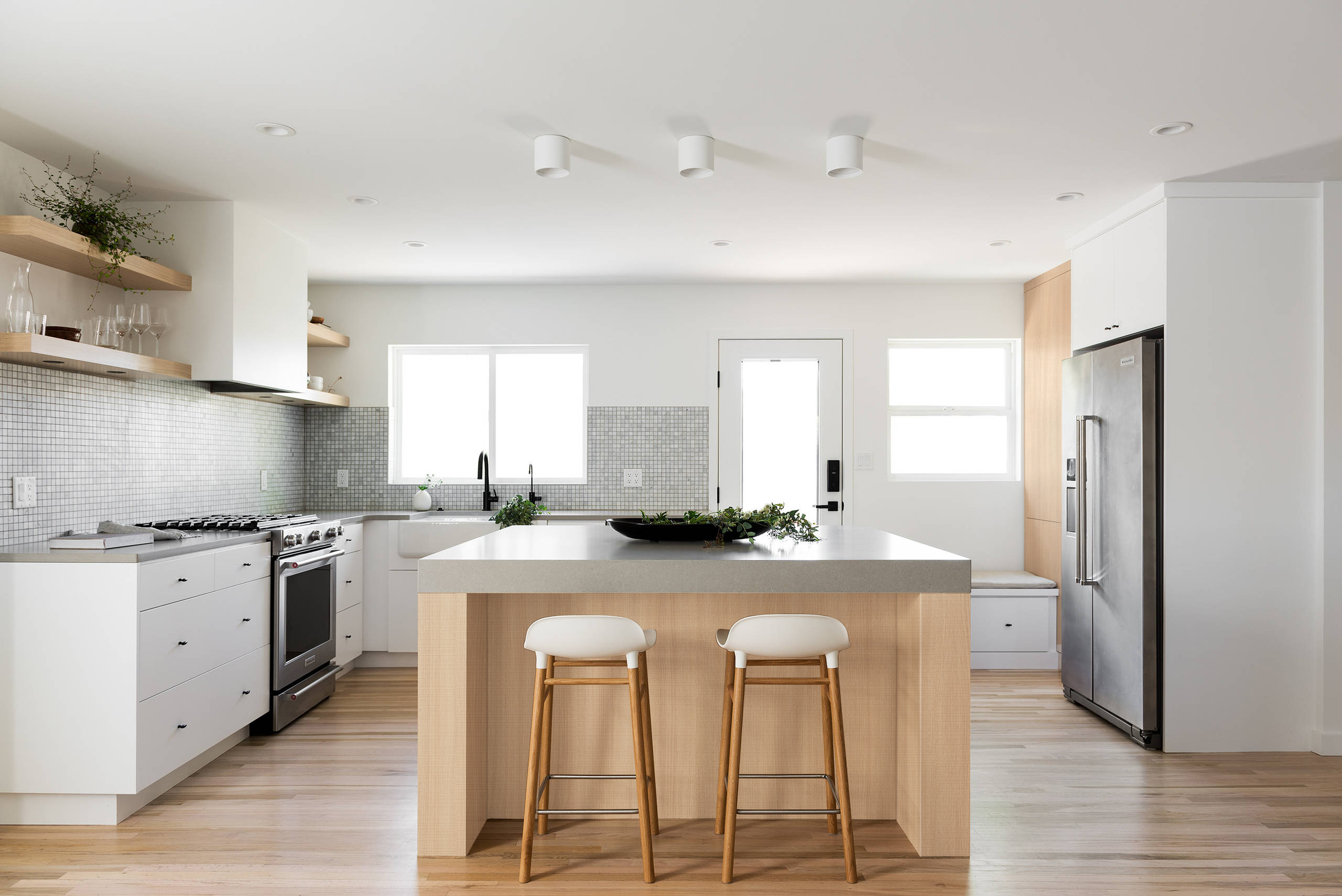

Kitchen Cabinet Carcasses and Box Construction

Kitchen cabinetry requires substrate materials that balance structural strength, weight efficiency, cost effectiveness, and moisture resistance. Cabinet side walls, bottom bases, and internal shelving encounter continuous dead loads from stacked dishware, cookware, and pantry goods.

Standard particle board substrates measuring sixteen or eighteen millimeters in thickness serve as the benchmark choice for kitchen cabinet carcasses in dry zones. For sink units, trash pull-outs, and dishwasher end panels where water contact is possible, specifying a moisture resistant particle board or MDF substrate provides essential insurance against accidental leaks. Proper shelf support pin hole sizing and adherence to maximum unsupported span guidelines prevent permanent horizontal shelf deflection under heavy storage loads.

Architectural Wall Cladding and Vertical Feature Panels

Large format wall paneling, elevator cab surrounds, corporate lobby feature walls, and acoustic wall baffles prioritize flatwise stability, light weight, and visual texture. Vertical installations encounter lower mechanical impact than horizontal work surfaces, making panel flatness and secure wall mounting the primary design parameters.

MDF melamine board substrate panels are widely specified for decorative wall cladding due to their smooth surface profile and uniform density. Mounted to perimeter walls using concealed French cleats, Z-clip aluminum extrusions, or direct mechanical fasteners, MDF core panels maintain flatness across expansive visual fields. The homogenous fiber structure allows precise CNC routing of reveal joints, linear accent grooves, and perimeter shadow lines without exposing coarse internal chips.

Commercial Office Furniture and High Wear Fixtures

Commercial environments including open plan office workstations, reception desks, library study carrels, and retail display fixtures demand high resistance to physical wear, impact, and dynamic loads. Furniture components in these spaces experience continuous contact from office chairs, mobile pedestals, computer equipment, and routine janitorial cleaning.

For heavy duty commercial work surfaces, high density fiberboard or thick MDF substrates provide the necessary impact absorption to resist surface denting from dropped objects. Vertical partition panels and mobile storage pedestals utilize particle board substrates to optimize overall furniture weight while maintaining structural rigidity. Utilizing heavy duty ABS or PVC edge banding bonded with moisture resistant adhesives ensures that the edges of the melamine board substrate remain protected against severe mechanical impacts in active commercial environments.
