Rock Design Melamine Board: How Bending Strength 14.0 MPa Provides the "Confidence" for Long‑Span Design

        In modern commercial spaces and high‑end residential design, "long spans" are becoming an increasingly common design language.

         A 2.4‑metre cantilevered desktop, a 3‑metre open shelf with no intermediate support, a reception desk with a hollow base – these designs pursue a lighter, more transparent visual effect.

        But they impose a very practical requirement on panels:not only must they look good, but they must also withstand long‑term loads without breaking or sagging.

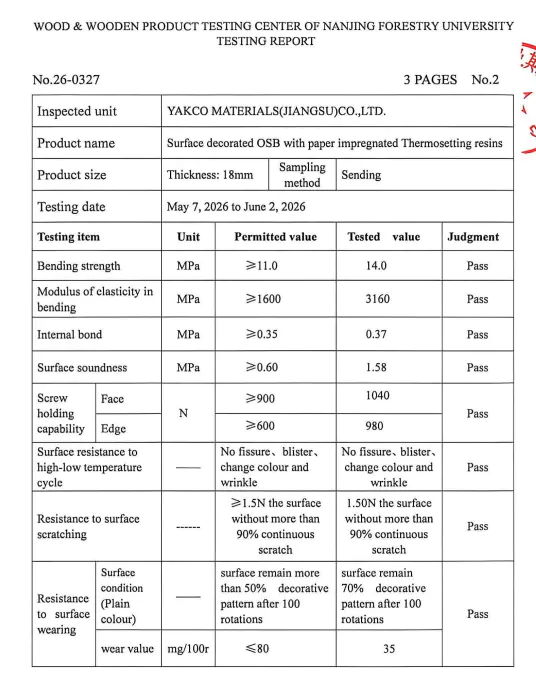

        YAKCO Rock Design Melamine Board, in the 2026 national test, achieved a bending strength of 14.0 MPa and a modulus of elasticity in bending of 3160 MPa.

These two data points precisely answer the most critical questions for rock grain boards in long‑span applications: Will it break under load? Will it sag over time?

More:yakco technology

1.Bending Strength 14.0 MPa: Bearing weight without "breaking"

        Bending strength, simply put, is the maximum stress that a panel can withstand before its surface fibres reach failure under bending force – how much weight can this board take before it breaks.

National standard GB/T 15102-2017 requires a bending strength of ≥11.0 MPa for surface decorated particleboard with paper impregnated thermosetting resins. YAKCO achieved 14.0 MPa, exceeding the national standard by 27%. This means:

Rock grain tabletops can be made larger and thinner.

For a 1.8‑metre rock grain tabletop, an ordinary panel (11.0 MPa) is already close to its breaking point when fully loaded, while YAKCO substrate (14.0 MPa) still has ample safety margin. Designers can reduce support points and increase cantilever lengths to achieve a lighter structural language.

Commercial display stands can cantilever further.

Rock grain display stands with hollow bases need to bear exhibits without tilting. A bending strength of 14.0 MPa makes cantilevered structures more reliable, allowing the stand to appear as if it is "floating" above the floor.

Accidental heavy loads do not cause breakage.

In commercial spaces, occasional heavy objects placed on the surface, or a guest accidentally sitting on it – the margin of 14.0 MPa ensures that the rock grain board does not break under unexpected loads.

2.Modulus of Elasticity in Bending 3160 MPa: Bearing weight without "sagging"

If bending strength answers "will it break?", then modulus of elasticity answers "will it bend?"

Modulus of elasticity in bending reflects the panel's ability to resist bending deformation – the higher the value, the "stiffer" the panel, and the smaller the deflection under load.

The national standard requires ≥1600 MPa. YAKCO achieved 3160 MPa, nearly double the requirement.

This means:

Rock grain tabletops do not sag under long‑term loads. A 2.4‑metre rock grain tabletop, with a central load of 80 kg (approximately the weight of an adult), produces an instantaneous deflection far lower than the national standard allowable value, and no permanent "sag" will appear after long‑term use.

For hotel lobby reception desks and restaurant long tables, this means the surface remains flat after years of use.

Rock grain wall cladding does not deform under its own weight.

When large‑area rock grain wall cladding is installed vertically, its own weight causes slight bending in the middle. High modulus keeps the panels "standing straight," with the entire wall flat and uniform.

Rock grain cabinet doors do not sag under their own weight.

For rock grain cabinet doors over 2 metres tall, if the substrate's modulus is insufficient, the door's own weight causes bending in the middle – when closing, the top edge fits while the bottom gap is large. 3160 MPa keeps tall doors "standing straight."

3.The "Chassis" Behind High Bending Performance: Density and Internal Bond

Bending strength and modulus of elasticity do not come from nowhere. They depend on two underlying indicators of the substrate:

Density 0.72 g/cm³– uniformly distributed, ensuring no "soft spots" in the mat that could become stress concentration zones. Low density fluctuation means consistent bending performance across the same batch – the first panel is as "stiff" as the thousandth.

Internal bond 0.37 MPa– the internal layers of the substrate are "held together tightly." Under bending load, the load transfers from the surface layer to the core layer. If internal bond is insufficient, inter‑layer slippage occurs, greatly reducing bending performance.

These two indicators are the prerequisites for the stable output of 14.0 MPa and 3160 MPa.

4.Typical Application Scenarios

Based on a bending strength of 14.0 MPa and a modulus of elasticity in bending of 3160 MPa, Rock Design Melamine Board is particularly suitable for the following long‑span applications:

Hotel lobby reception desks – long tabletops without intermediate support, withstanding guest leaning and luggage placement – no breakage, no sagging.

Open kitchen islands – countertops extended as a bar with no cabinetry underneath – high modulus ensures they remain level after years of use.

Commercial exhibition display stands– hollow base designs – bearing heavy exhibits without tilting.

Library bookshelves – long spans fully loaded with books – shelves do not bend or sag.

5.Conclusion: The "Long Span" of Rock Grain Is Underpinned by Bending Data

        Designers choose rock grain boards because they are first attracted to the visual texture – the grain of granite, the layering of slate, the mottling of terrazzo. But in commercial spaces and high‑end residences, the rock grain board is not just a "decorative surface" – it is also a "structure."

A rock grain tabletop, a rock grain wall cladding, a rock grain display stand – they must not only look good, but also "hold up" under long‑term loads.

        YAKCO Rock Design Melamine Board uses the two data points of bending strength 4.0 MPa (27% above the standard) and modulus of elasticity in bending 3160 MPa (nearly double the standard) to answer the most practical questions for rock grain boards in long‑span design: "Bears weight without breaking, does not sag over time."

        When a designer says, "I want to do long‑span, minimal‑support designs," YAKCO answers the unspoken question with data: "Rest assured, it holds up."
